Transformation and Connection

My first concept is inspired by Luis Barragan. He uses flat planes in his architecture and a concept of "Interlocking planes to bring complexity and unity" is seen throughout his buildings. This is accomplished by making use of different rectangles intertwining and interlocking with the other shapes in my model. This then gets developed into an "overpass garden", allowing students to go from one side of university to the other by walking through the bridge or the 'interlocking' garden. This first concept addresses sustainability as I incorporated solar panels on the roofs of several structures. Rainwater collection is also used to make use of this source of water to provide needs for the university. A vegetative roof is placed in the center of the light rail station, with different layers to allow for drainage, absorption of rainwater, provide insulation, help lower urban air temperature and provide a nice scenery to students and staff at UNSW.

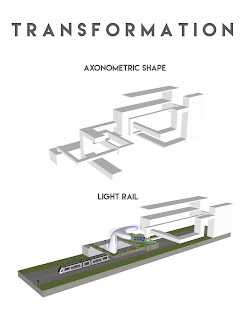

My second concept is inspired by Toyo Ito. Nature is considered when Toyo Ito designs his buildings. The concept of "incorporating nature into architecture by making use of open skies" is seen throughout his work. Walls and ceilings will be cut open to allow for sunlight and view of the scenery. I used this idea to transform my axonometric into a overhead roof that provides shade but also allows for sunlight and nature to be kept in place. A tree is placed in the center of the station, growing from the ground and reaching out above the roof, interweaving through the gap in the roof. I also added a lot of greenery to enhance the idea of incorporating nature. This second concept helps situate the light rail station within its urban context. Most of the rectilinear shapes in my second group is used to help from the roof, the opening of the wall at the back, and the bridge. The roof is placed so that it covers the entire anzac parade and its openings allow for the tree to go through. The opening at the back helps situate the stop within the ground and holds the roof in place. Finally, the bridge is to situate the light rail station within the university, connecting one side to the other and allowing a safe journey.
